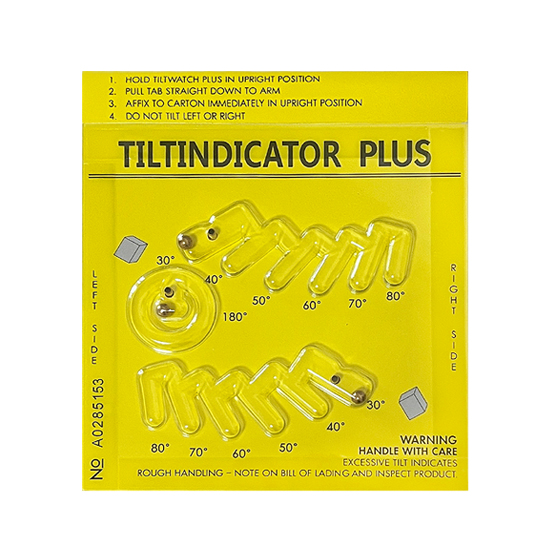

Tilt Indicator label PLUS

Tilt indicator PLUS detects and indicates the degree your package was tilted to the left, right, or even a complete overturn.

If you need detailed information about the tilting of your goods, apply this product to the packaging.

sEND iNQUIRY

Description
Specifications
Mounting Instruction
Applications
Technical Documents

Overview

Tilt Indicator Plus is a multi-function logistic monitor device that has three separate indicator sections for detecting left tilt, right tilt and overturn, and indicates the degree of the tilting.

The indicators provide a prominent visual deterrent and 360° monitoring of improper handling on goods which must remain upright, reduce mishandling during transportation or storage.

Key Benefits

Deters careless handling and reduces transportation damage
Provides immediate visual evidence of excessive impact, Identifies handling and logistics weak points
Encourages accountability throughout the supply chain, supports continuous supply chain improvement

Alerts receivers to inspect shipments before acceptance
Improves delivery quality and customer satisfaction, reduces replacement, repair, and warranty costs

Parameter	Specification
Model	Tilt Indicator Label Plus
Dimensions	118x118x8mm
Activation Angle	10° increments from 30° axis
Tolerance	±5°
Monitoring	Single sided tilting and rollover
Adhesive	Acrylic Adhesive
Composition	Clear PTE housing and plastic indicator
Mounting	Pressure-sensitive adhesive exposed when liner and arming pin are peeled away
Shelf Life	2 Years (Stored at 20°C, 1 ATM)
