Reversible temperature indicator

nCW Series reversible Temperature Indicator

Reversible temperature indicator is a kind of reusable temperature measurement device that can show temperature change with color, number.

This label is widely used for temperature monitoring of various indoor object surfaces.


Overview

The reversible temperature indicator label can show temperature change with color, number. It is reversible and has adhesive sticker itself. This label is widely used for temperature monitoring of various indoor object surfaces, such as monitoring the temperature of electrical equipment casings, manufacturing industries, etc.

Once the temperature of the monitoring area reaches or exceeds the rated temperature of the temperature measuring patch, the color changing temperature measuring patch immediately changes from black to red and displays the overheating number at that location on the temperature measuring patch. When the monitoring temperature turns to cool under the rated temperature, label will recover the original color.

It is easy for people to detect the temperature rise in the monitoring area during inspection, thereby identifying potential faults and preventing accidents from occurring.


Key Benefits

  • Reversibility makes it can be used time and again
  • Provides immediate visual evidence of excessive temperature, alerts people to inspect the status
  • Color change and temperature number indication.
  • Protective film is water-proof, dust-proof, oil-proof and antifouling.

FAQ

What is a reversible temperature indicator?

A reversible temperature indicator is a reusable temperature monitoring device that changes appearance according to temperature variations and returns to its original state when temperature returns to normal.

What is the difference between reversible and irreversible temperature indicators?

Reversible indicators allow repeated observation, while irreversible indicators provide permanent evidence of temperature exposure.

Parameter

Specification

Model

Reversible Temperature Indicator Label

Temperature Range

Regular 55ยฐC, 65ยฐC, 75ยฐC, accept custom temperature threshold from 0 – 75ยฐC

Tolerance

ยฑ2ยฐC

Color Change

Black to red if overheat, revert to black color if temperature below the threshold

Composition

Backing cardboard, PE top layer film, adhesive, temperature change wax

Mounting

Back Adhesive

Shelf Life

2 Years

Model

Size

Color Change

Refer Picture

NCW1-55
NCW1-65
NCW1-75

25x21mm

NCW2-55
NCW2-65
NCW2-75

30x26mm

Black to red if overheat, revert to black color if temperature
below the threshold

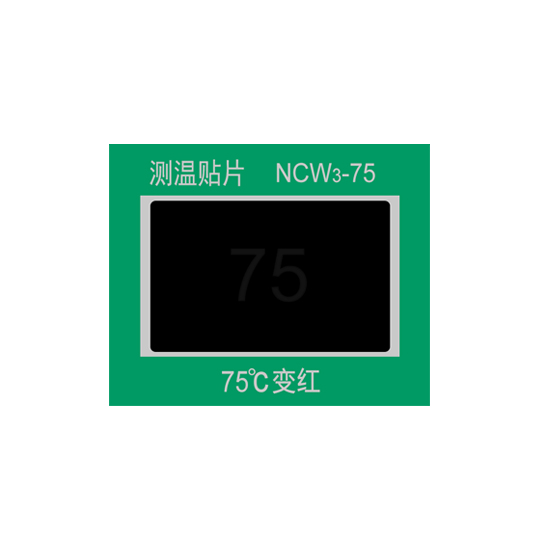

NCW3-55
NCW3-65
NCW3-75

25x40mm

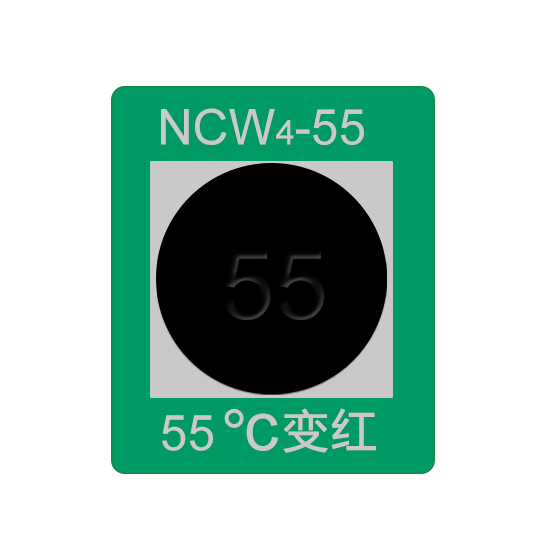

NCW4-55
NCW4-65
NCW4-75

40x40mm

Black to red if overheat, revert to black color if temperature
below the threshold

Railways

manufacturing

Electricity

Logistic
